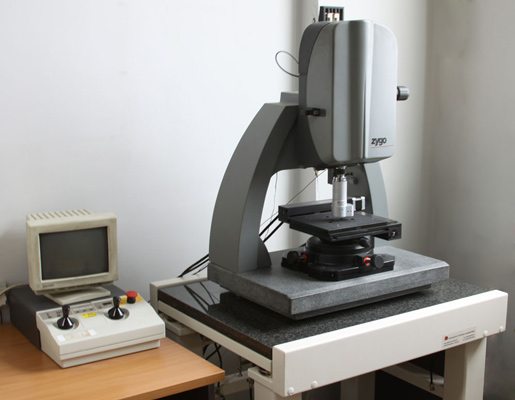

The Zygo New View 5000 System is a general purpose three dimensional, surface structure analyzer. It provides graphic images and high resolution numerical analysis to accurately characterize the surface structure of test parts. The New View uses scanning white light interferometry to image and measure the micro structure and topography of surfaces in three dimensions. A wide variety of surfaces can be measured with the New View.
All New View microscopes come with a granite base, a stable gantry column, motorized focus control, and manual image zoom with a range from 0.4 to 2.0.
The New View 5000 system includes:
- · Base Microscope - P/N 63-0412-11, serial # 99-03-52009
- · Nikon 2.5x/0.075 TI WD 10.3 - serial # 423265 Objective
- · 4-Axis Motorized Stage
- · Electronic Enclosure - serial # 99-03-52009
- · 5-Axis Motor Driver Assembly- serial # 98-50-52002
- · Vibration Isolation Table - TMC Mod-632631601, serial # 3589
- · Dell Color Monitor - model # D1226H
- · Video Monitor - model MB0931, serial # W5WKU5382461
- · APC Power Manager
Microscope Specifications:
- · Measurement Technique – Scanning White Light Interferometry
- · Light Source – Filtered White Light, Tungsten Halogen Lamp
- · Part Viewing - Video Monitor and On-screen Display
- · Focus- Manual or Automatic
- · Sample Specifications – Transparent or Opaque
- · Sample Reflectivity – 4 to 100%
- · System Magnification with 2. 5x Objective – 50x
|
