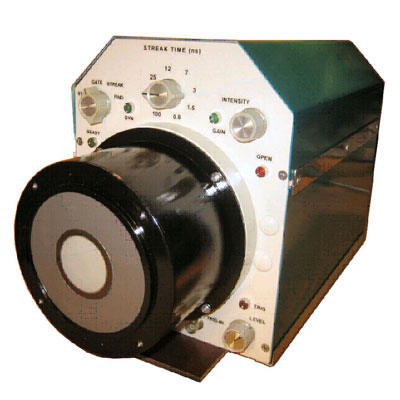

The camera is designed on the basis of electron-optical converter PV-001, which has S-1 or S-20 photocathode, and coupled with an amplifier of light through fiber-optic disk.
The time resolution of the camera about 1 ps, the range of developments - from 1 to 200 ns / screen. Screen size - 40 mm. To increase the brightness of the image in the camera are used as light amplifiers based on microchannel plates, and without it. The dynamic range of CCD recording system - about 100.
A modification of this camera is a camera designed on the basis of small-sized IC.
The advantage of this EOC is a simple design and small size, with a temporal resolution of the order of 30 ps.
|
